Superlative Arms Carbine Length Low Profile Adjustable Piston Kit .625 Clamp

Superlative Arms

SABO-PS-C625CM

New product

Superlative Arms AR15 Carbine Length Piston Kit.  Fully Adjustable .625" Melonited finish. Clamp-On

More details

This product is no longer in stock

$250.00

More info

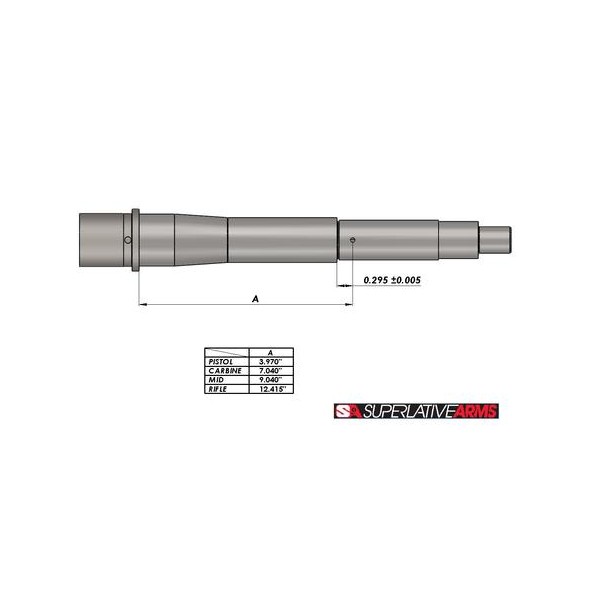

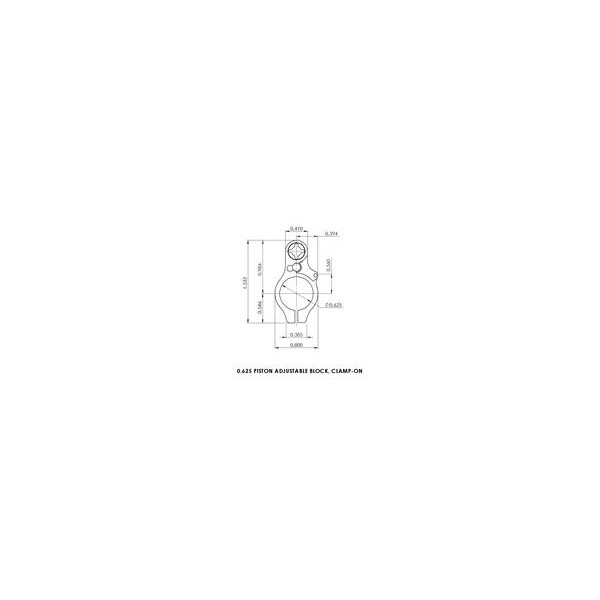

.625" Adjustable Piston System - Carbine Length - Clamp On - Melonited - Low Pro - AR15.  Fits inside most AR15 handguards/rails.  See drawing for exact dimensions.

Now there's a piston kit for your "pencil" and other lightweight AR15 barrels!

  • The pressure used in the block is reduced only to the amount required to drive the bolt carrier. The remaining gas / pressure are bled out of the block allowing the system to run much cleaner and cooler.
  • Reduction of felt recoil.
  • Patent pending adjustment detent is located outside of the block and therefore no contamination.
  • The gas adjustment screw does not restrict the gas flow; therefore there is no erosion or seizing of the screw / no loss of detent due to carbon build up.  Although it is removable, we have added a safety mechanism, which stops you from unintentionally backing the screw all the way out.
  • When using SBR’s and / or suppressors the bleed off port allows the excessive pressure to be exhausted out of the block reducing blow back.

SPECS:

  • Firearm Type:  AR15
  • Gas Length:  Carbine
  • Barrel Diameter:  0.625"
  • Weight:  13.1 oz.
  • Piston Block Attachment Type:  Clamp
  • Piston Block Material and Finish:  416 SS, Melonite
  • Carrier:  Ion Bonded, 1 pc. Carrier w/ Skis and Dimpled Key
  • Gas Adjustment:  (Patent Pending) 30 Locked Positions, Front Of Block
  • Bleed Off Port:  (Patent Pending) Front Of Block

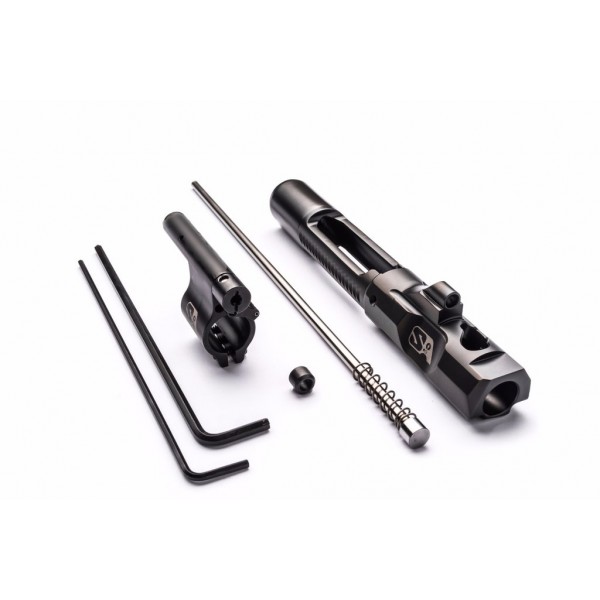

INCLUDED:

  • Piston Block Assembly
  • Carrier (bolt not included).
  • (1) 3/32" X 6"  Hex Key  (tool to adjust gas screw)
  • (1) 9/64" X 6" Hex key  (tool to install/remove gas block plug)
  • Installation Instructions & QR Code For Video Tutorial
